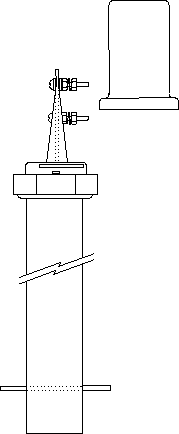

Little Fink® Cathodic Protection Test StationThe Little Fink® cathodic protection test station is a 2 or 3 lead version of the Big Fink®. Since 1977 its rugged, maintenance free construction has served pipeline companies worldwide. Manufactured by Cott in its Pittsburgh and Los Angeles factories, the Little Fink® is available from Cott distributors worldwide.
CP Test Station|
Cap, Terminal Board and Collect Nut made from Makrolon® polycarbonate. One of the toughest plastics in the world.
Standard nickel plated brass or optional stainless steel for guaranteed long service life. Up to 3 terminals accessible from both sides of the board.
All Little Fink® terminal boards can accommodate COTTShunts®, Burndy connectors, Cott bonding/shorting straps, Banana Jacks, ZAPGard®, locking devices, lightning arrestors and flange mounting brackets.
Red, Orange, Yellow, Green, Blue, White and Black are standard on Little Fink® and COTTPipe®. Any color is available as an option.
COTTPipe® PE (standard) polyethylene has over 20 years of proven durability. COTTPipe® PC (optional) polycarbonate is available for the toughest applications. Standard length 6 feet, available to 40 feet.
Available in models to fit 3/4" and 1-1/4" pipe
COTTPipe® PE is easily installed and prevents pullout.
